5-axis CNC Machining: Technology, Advantages, and Industrial Applications

5-axis CNC machining stands as a pinnacle of advanced subtractive manufacturing, revolutionizing precision engineering across global industries. By integrating three linear axes (X, Y, Z) with two rotational axes (typically A, B, or C), this technology enables the machining of complex geometries in a single setup, outperforming traditional 3-axis systems in versatility, accuracy, and efficiency. HLW, a leader in precision manufacturing, leverages state-of-the-art 5-axis CNC solutions to deliver high-performance components for aerospace, automotive, medical, and energy sectors, combining cutting-edge equipment, expert engineering, and tailored processes to meet the most demanding industrial requirements.

Core Principles and Process Variations of 5-axis CNC Machining

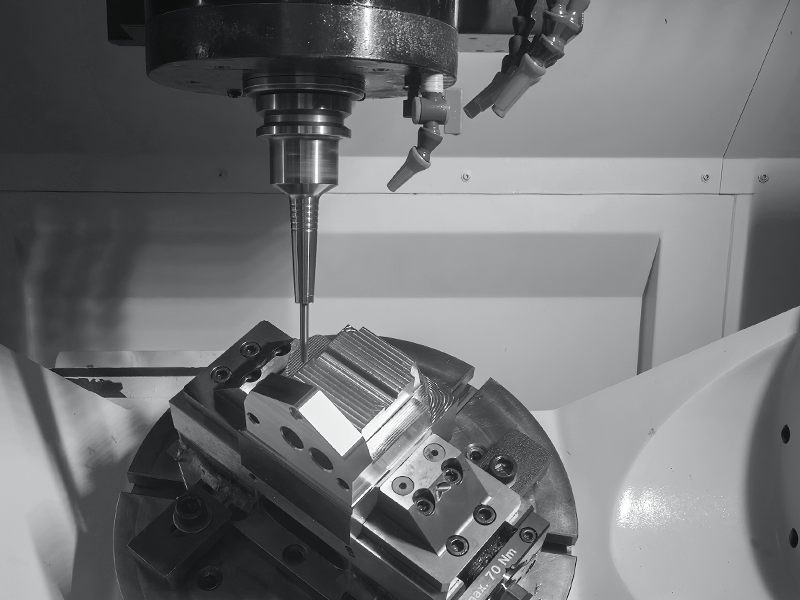

At its core, 5-axis CNC machining achieves multi-directional cutting by synchronizing linear movements (left-right, front-back, up-down) with rotational tilting or turning of the workpiece or cutting tool. This design eliminates the need for multiple setups, a key limitation of 3-axis machining that often introduces alignment errors and extends production time. There are three primary process configurations, each optimized for specific applications:

3-axis Machining: The foundational method, limited to linear movements along X, Y, and Z axes with a fixed tool orientation. Ideal for simple, low-complexity parts but requires repeated repositioning for multi-sided features, increasing cycle time and error risk.
3+2-axis Machining (Positional 5-axis): Combines three linear axes with two rotational axes to position the workpiece at optimal angles before cutting. Once aligned, machining proceeds via linear axes only, reducing setup time and enabling the use of shorter, stiffer tools for improved accuracy and surface finish.

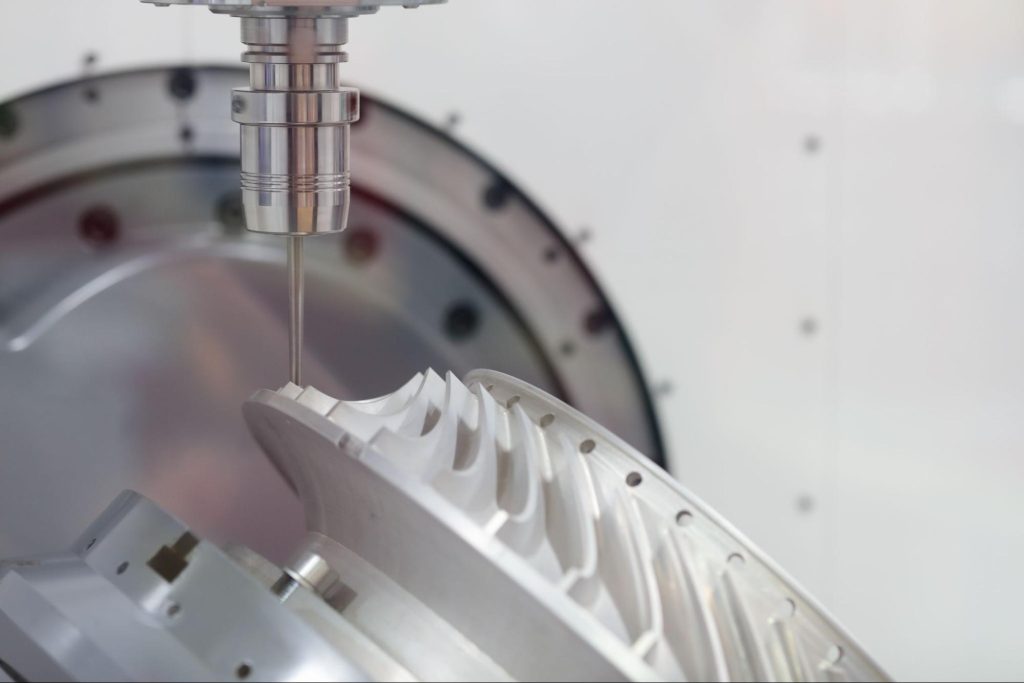

Simultaneous 5-axis Machining: The most advanced configuration, where all five axes move dynamically in real time. This enables continuous cutting of curved surfaces, undercuts, and complex contours—critical for components like turbine blades, orthopedic implants, and aerospace structures—while maintaining ultra-tight tolerances.

The rotational axes (A, B, C) vary by machine design: trunnion-style systems use A and C axes, while swivel-rotate models employ B and C axes, each rotating around the X, Y, or Z axis to maximize tool access to the workpiece.

Key Advantages of 5-axis CNC Machining

5-axis CNC machining offers transformative benefits that make it indispensable for modern manufacturing, addressing pain points of traditional methods while unlocking new design possibilities:

Superior Precision and Consistency: By minimizing setups, the risk of human error and misalignment is drastically reduced. HLW’s 5-axis systems achieve positional accuracy as tight as 0.005 microns, angular accuracy of 1°, and dimensional tolerances down to ±0.0001 inches, meeting the rigorous standards of aerospace and medical industries.
Enhanced Efficiency and Productivity: Complex parts that require 8-12 minutes per unit with traditional processes can be machined in 3-5 minutes with 5-axis systems, boosting efficiency by up to 60%. Simultaneous machining and automated tool changers reduce cycle times, while integrated processes eliminate the need for multiple machines.
Complex Geometry Capability: The technology excels at machining free-form surfaces, internal contours, and multi-angle features that are impractical or impossible with 3-axis systems. This enables the production of one-piece components (e.g., turbine blades, rocket sub-components) that previously required assembly of multiple parts, reducing failure points and costs.
Improved Surface Finish: Optimized toolpaths and constant cutting angles minimize tool deflection and chatter, resulting in smoother surface finishes (Ra < 0.1 µm for high-speed applications). Features like helical oil grooves or crosshatched surfaces can be machined with precision to enhance functionality.
Material Versatility: 5-axis systems handle a wide range of materials, from aluminum and brass to high-performance alloys like Hastelloy, Inconel, and titanium. HLW supports materials across UNS, DIN, and ISO standards, including alloy steels (4140, 4340), stainless steels (316L, 17-4 PH), and biocompatible titanium grades for medical implants.

Addressing Common Misconceptions About 5-axis Machining

Despite its advantages, 5-axis machining is often misunderstood. HLW debunks key myths to help manufacturers make informed decisions:

Myth 1: Complex Operation: Modern 5-axis machines feature intuitive, Windows-based controls with standard G-code compatibility, customizable menus, and auto-tuning capabilities that compensate for geometric errors in 10 minutes—no specialized expertise required.
Myth 2: Prohibitive Cost: While initial investment is higher than 3-axis systems (ranging from $100,000 to millions for advanced models), the long-term ROI is substantial. Reduced setup time, scrap rates (from 15% to ≤0.3%), and expanded business opportunities justify the cost.
Myth 3: Software Incompatibility: 5-axis systems integrate seamlessly with mainstream CAD/CAM software (Mastercam, GibbsCam, Autodesk), translating designs directly into optimized toolpaths without additional programming.
Myth 4: Skilled Labor Shortage: Dynamic fixture offset technology eliminates the need for precise part centering, enabling any operator to achieve consistent results. HLW provides onsite and offsite training to ensure teams maximize machine capabilities.

Industrial Applications and HLW’s Capabilities

5-axis CNC machining is integral to industries demanding precision, reliability, and innovation. HLW’s solutions serve:

Aerospace & Defense: Production of turbine blades, aircraft door stops, rocket sub-components, and satellite parts, adhering to AS9100 standards and ITAR compliance.
Medical: Manufacture of orthopedic implants, LASIK surgery devices, 3D heart cavity instruments, and surgical tools with biocompatible materials and micron-level tolerances.

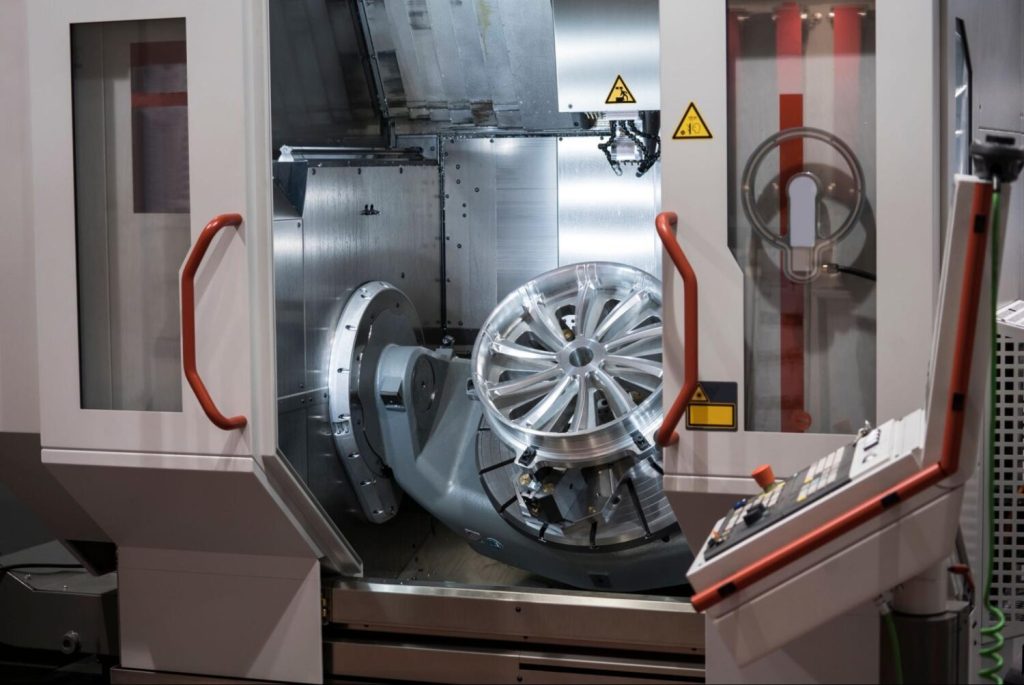

Automotive: Machining of transmission components, turbocharger vanes, suspension parts, and gearbox sliding sleeves, supporting high-volume production with batch consistency.
Energy & Oil/Gas: Components for gas turbines, hydraulic systems, and offshore equipment, designed to withstand extreme temperatures and corrosive environments.
Mold & Tool Making: Precision molds for plastic injection, die casting, and glass molding, with complex cavities and contours for high-quality part replication.

HLW’s 5-axis capabilities include:

Machine portfolio: From compact models for small parts (outer diameter ≤120mm) to gantry systems for workpieces up to 28”×24”×15” and 40 tons.
Process optimization: Tool Center Point Control, Super NURBS for smooth toolpaths, and in-process measuring for real-time quality monitoring.
Customization: Tailored solutions for prototyping, low-volume production, and high-volume runs, with lead times as short as 3 days for expedited orders and standard 12-week delivery for complex projects.

Quality Assurance and Certification

HLW maintains strict quality control throughout the 5-axis machining process, from raw material inspection to final testing. Key quality measures include:

Comprehensive documentation: Material Test Certificates (MTC), CMM inspection reports, hardness test results, and RoHS/REACH compliance certificates.
Advanced testing equipment: Coordinate Measuring Machines (CMM), surface profilometers, and spline gauges for dimensional verification, with 100-piece sampling and traceable data retention.
Industry certifications: ISO 9001:2015, AS9100D, and ITAR registration, ensuring adherence to global quality and regulatory standards.

Contact HLW for Your 5-axis CNC Machining Needs

Whether you require precision components for aerospace, medical devices, or automotive applications, HLW’s 5-axis CNC machining solutions deliver accuracy, efficiency, and reliability. Our team of engineers provides design for manufacturing (DFM) support, material selection guidance, and end-to-end project management to bring your vision to life.

For more information, to request a quote, or to discuss your specific requirements, contact HLW at +86 18664342076 or email inquiries to info@helanwangsf.com. Partner with HLW to leverage the power of 5-axis CNC machining and gain a competitive edge in your industry.
