Carbon steel, an alloy of iron with approximately 1% carbon (and often small additions of alloying elements like molybdenum, chromium, or nickel), stands as one of the most versatile and widely used materials in manufacturing. Renowned for its excellent balance of cost-effectiveness, strength, and machinability, it serves critical roles across nearly every major industry. HLW leads the way in delivering high-quality Carbon Steel Precision CNC Machining Services, combining advanced technology, decades of expertise, and a commitment to precision to meet the diverse needs of custom prototypes, low-volume runs, and high-volume production.
Carbon Steel Grades and Key Properties
HLW offers a comprehensive range of carbon steel grades, each tailored to specific application requirements based on their unique mechanical properties. These grades are categorized by carbon content and alloy composition, ensuring optimal performance for various use cases:
Low Carbon Steel (Mild Steel)
- Typical Grades: 1018, A36, 1215
- Properties: Carbon content below 0.3%, excellent weldability, good machinability, moderate strength, and cost-effectiveness. Key specifications include yield tensile strength ranging from 250 MPa (A36) to 415 MPa (1215), Brinell hardness between 119 (A36) and 167 (1215), and density around 7.85-7.87 g/cm³.
- Applications: General-purpose components such as bolts, nuts, screws, structural supports, pipe fittings, and automotive/construction structural parts. 1215, a free-machining variant with high sulfur content, is ideal for parts requiring extensive machining.
Medium Carbon Steel
- Typical Grade: 1045
- Properties: Carbon content between 0.3% and 0.6%, higher strength and wear resistance than low carbon steel, good ductility, and responsiveness to heat treatment. It boasts a yield tensile strength of 560 MPa, Brinell hardness of 210, and 16% elongation at break.
- Applications: Mechanical components subjected to moderate stress, including gears, axles, crankshafts, machine tool parts, and hydraulic components.
High Carbon Steel
- Typical Grades: A2 Tool Steel, O1 Tool Steel
- Properties: Carbon content above 0.6%, exceptional hardness, wear resistance, and edge retention, though limited formability and weldability. A2 Tool Steel offers a yield tensile strength of 1275-1585 MPa and Rockwell C hardness of 57-62 HRC after heat treatment, while O1 Tool Steel reaches 63-65 HRC.
- Applications: Cutting tools, punches, dies, blades, springs, and high-strength machine parts requiring extreme durability.
Alloy Steel
- Typical Grades: 4130, 4140, 4140 PH, 4340
- Properties: Enhanced with alloying elements (chromium, molybdenum, nickel) for superior strength, toughness, and corrosion resistance. 4140 features a yield tensile strength of 675 MPa and Brinell hardness of 302, while 4340 offers excellent fatigue resistance and maintains properties at high temperatures. 4140 PH, a pre-hardened variant, eliminates post-machining heat treatment.
- Applications: Aerospace components, automotive parts, pressure vessels, shafts, gears, aircraft engine mountings, and high-strength bolts.
All grades are available in various forms, including bar, sheet, plate, tube, castings, and forgings, to accommodate diverse machining requirements.
Machining Technologies and Capabilities

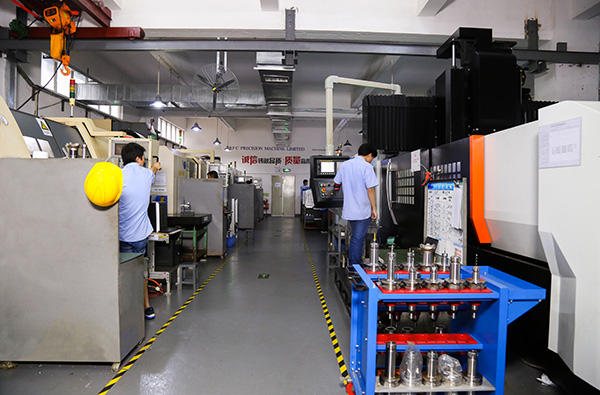

HLW leverages state-of-the-art CNC equipment and advanced machining techniques to deliver precise, efficient carbon steel processing, with capabilities spanning:
Core Machining Services
- Multi-axis Machining: 4-axis and 5-axis milling/turning for complex geometries and tight tolerances, enabling processing of intricate components like gears, manifolds, and aerospace parts.
- Specialized Processes: CNC milling, boring, grinding, EDM (Electrical Discharge Machining), Swiss machining, and micromachining for ultra-precision applications.
- Cutting Technologies:
- Fiber Laser Cutting: Fast, precise cutting of sheets and pipes (round, square, C-channel, angle iron) up to 1-5/8 inches thick with 6,000-watt lasers, utilizing beam-modulation technology for consistent performance across material thicknesses.
- Plasma & Flame Cutting: Cost-effective options for fluid seamless pipes, with automated multi-head systems for high-volume production.
- Water Jet Cutting: Ideal for large-diameter pipes and thick materials, enabling cutting, chamfering, and groove processing without thermal damage.
- Sawing: Cold circular saws with high-speed steel or carbide blades for alloy and high-alloy steel pipes.
Performance Metrics
- Tolerance: Achieves precision tolerances as tight as ±0.0002 inches to ±0.0005 inches, meeting the demands of high-precision industries like aerospace and medical device manufacturing.
- Size & Weight Capacity: Processes parts ranging from 3”x3”x3” (under 1 lb) to 150”x92”x48” (up to 44,000 lbs), supported by 35 overhead cranes with 20-ton lifting capacity.
- Turnaround: Quick-turn prototypes and production parts delivered in days, with free standard shipping on all US orders.
Surface Finishes and Post-Processing
To enhance corrosion resistance, wear resistance, and aesthetics, HLW offers a range of surface treatments and post-processing options:
- Nickel Plating: Uniform 0.1mm nickel layer for improved corrosion and wear resistance.
- Powder Coating: Robust finish (0.1524-0.3048 mm thick) to prevent rust on bare steel.
- Carburizing: Infuses surface carbon to boost hardness and wear resistance for high-stress components.
- Heat Treatment: Annealing, quenching, and tempering to tailor mechanical properties (e.g., strength, toughness) of medium and high carbon steels.
Industry Applications
HLW’s carbon steel CNC machining services cater to a broad spectrum of industries, leveraging the material’s strength, durability, and cost-effectiveness:
- Aerospace & Defense: Engine components, structural parts, and military hardware.
- Automotive: Gears, axles, crankshafts, and radiator fittings.
- Construction: Structural supports, pipes, and fabrications.
- Energy: Oil & gas components, wind energy parts, and power generation equipment.

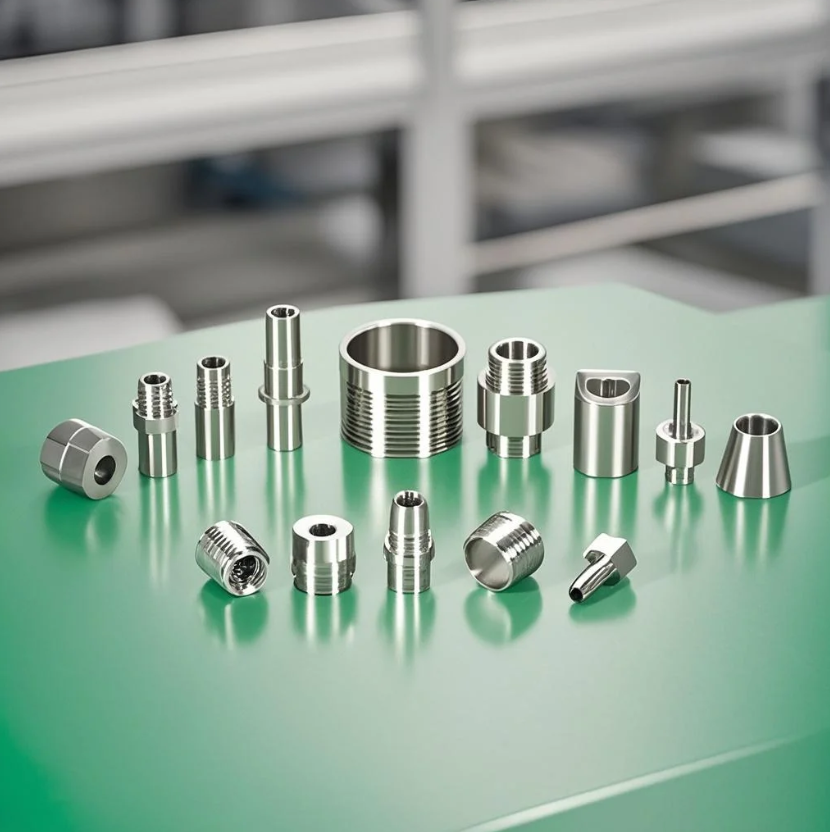

- Medical: Surgical instruments and biocompatible components (with stainless steel grades).
- Food & Pharmaceutical: Hygienic equipment and storage tanks.
- Marine: Propeller components, fittings, and corrosion-resistant parts.
- Industrial: Machinery components, die plates, and hydraulic parts.
Quality Certifications and Compliance
HLW maintains rigorous quality standards, holding certifications including ISO 9001:2015, ISO 13485, IATF 16949:2016, AS9100D, and ITAR registration. These credentials reflect a commitment to consistent quality, regulatory compliance, and customer satisfaction across all projects.
Cost-Saving Design Tips
To optimize manufacturing efficiency and reduce costs, HLW recommends:
- Material Selection: Choose the most suitable grade for the application (e.g., mild steel for low-stress parts instead of high-strength alloy steel) to avoid unnecessary expenses.
- Part Setup Optimization: Design components to minimize the number of machining setups, as setup costs can quickly offset material savings for cost-effective steels.
Contact Information
For instant quotes on custom carbon steel machined parts or to learn more about HLW’s capabilities, reach out today:
- Phone: 18664342076
- Email: info@helanwangsf.com
HLW combines decades of industry experience, advanced technology, and a customer-centric approach to deliver carbon steel precision CNC machining services that meet the highest standards of quality, precision, and reliability. Whether for prototypes or large-scale production, HLW is your trusted partner for all carbon steel machining needs.
