CNC Machined Camera Parts
When it comes to professional-grade imaging equipment, the quality of CNC machined camera parts is non-negotiable. Every component, from lens barrels to camera housings, demands ultra-tight tolerances, structural stability, and material durability to ensure flawless optical alignment and long-term performance. HLW is a leading China-based manufacturer of custom CNC machined camera parts, boasting over 15 years of technical expertise in crafting high-precision components for professional photography, thermal imaging, and industrial imaging systems. We specialize in one-stop CNC machining solutions, from rapid prototyping to mass production, and cater to global clients across the EU, North America, Japan, and beyond. For custom quotes and inquiries, contact us at +86 18664342076 or info@helanwangsf.com.
Why CNC Machining for Camera Parts?
CNC machining is the gold standard for manufacturing camera components due to its ability to achieve sub-micron accuracy, complex geometries, and consistent quality—critical factors for eliminating structural micro-vibrations and perfecting optical path alignment in professional imaging devices. Unlike traditional manufacturing methods, CNC milling and turning enable the production of custom, non-standard parts with tight tolerances (as low as ±0.002mm) and repeatable positional accuracy (<0.01mm), ensuring every camera part fits seamlessly and functions reliably. Whether for DSLR cameras, thermal imagers, ring cameras, or rugged gully cameras, CNC machined components deliver the precision required for high-stability imaging systems.
Our Range of CNC Machined Camera Parts
HLW fabricates a comprehensive selection of custom CNC machined camera parts, covering all core and specialized components for professional and industrial imaging equipment. Our expertise includes:

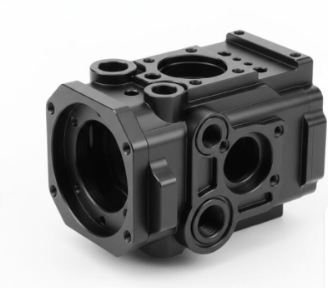

- Camera main body & frame (aluminum alloy for lightweight strength)

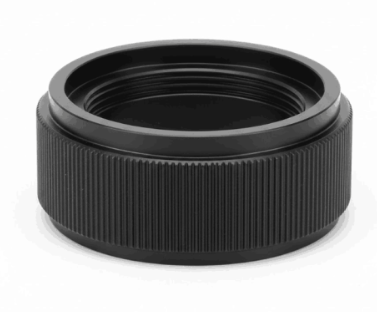

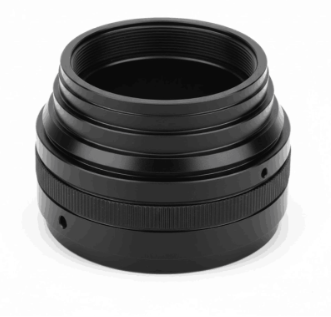

- Lens mount, lens barrel & focusing ring
- Camera housing & front cover
- Focusing shafts & adjustment shafts
- Sensor mounts & sensor holders
- Camera heat sink & mounting bracket
- Control dials & tripod plates
- Gimbal arms & camera cages
- Internal helicoids, gears & bushings
- Thermal imager components & precision optical assembly parts
We also produce CNC machined parts for camera assemblies used in niche applications, such as underwater photography, vacuum environments, and marine/industrial imaging, with components optimized for corrosion resistance, thermal stability, and rugged use.
Material Selection for CNC Machined Camera Parts
At HLW, we select materials based on the specific functional and mechanical requirements of camera components, balancing lightweight design, durability, friction reduction, and thermal stability. Our extensive material portfolio includes aerospace-grade alloys, engineering metals, and high-performance plastics, all compliant with RoHS standards. We provide material certificates and SGS reports upon request, and our core materials for camera parts are:
| Material | Grades/Alloys | Key Benefits | Typical Camera Components |
|---|---|---|---|
| Aluminum Alloy | 6061, 6082, 7075, 6063, 2011, 2017, 5052 | Lightweight, high strength, easy to machine, anodizable | Main frames, lens housings, camera body, adapters |
| Stainless Steel | 303, 304, 316 | Corrosion resistance, dimensional stability, wear resistance | Lens mounts, focusing shafts, mounting plates |
| Brass/Copper | C3602, C3604, C4641 | Low friction, smooth motion, wear resistance | Fine adjustment gears, helicoids, bushings |
| Titanium | Grade 2, Grade 5 | High strength-to-weight, thermal stability | Sensor mounts, underwater housings, high-end camera parts |
| Engineering Plastics | PEEK, POM, PTFE, PC | Low friction, chemical resistance, insulation | Internal spacers, sliding bearings, insulating rings |
Our most commonly used material for camera main bodies and structural components is 6061-T6 aluminum alloy—a versatile grade prized for its high strength, excellent machinability, and ability to accept durable anodized finishes for corrosion protection and aesthetic appeal.
Precision Machining Capabilities & Tolerances
HLW operates a world-class manufacturing facility equipped with state-of-the-art CNC machinery from leading brands, including Brother, Haas, and Mazak. Our full in-house machining capabilities cover 3-axis, 4-axis, and 5-axis CNC milling, precision CNC turning, Swiss machining, wire EDM, tapping & thread grinding, and sheet metal fabrication—enabling us to produce simple to ultra-complex camera parts with unmatched precision.
Key Machining Specifications:
- Tolerances: As tight as ±0.002mm to ±0.01mm for metal parts; customizable 0.01~0.05mm per client requests
- Positional repeatability: <0.01mm for high-stability imaging systems
- Max CNC milling workpiece diameter: 2–350mm
- Machining standard: ISO 2768-F
- Thread capabilities: UNEF thread with Helicoil fit for precision connections
- Specialized processes: T-shaped drill bit for inner housing fabrication, high-speed machining (HSM) for thin-walled components
Swiss machining at HLW excels at producing micro-diameter camera parts with extreme concentricity, while wire EDM creates intricate slots and complex internal features in hard materials that conventional tools cannot machine—critical for precision optical and mechanical camera components. We also offer integrated 3D printing, die casting, and extrusion molding services to support every stage of camera part production, from prototyping to mass production.
Surface Treatments & Finishes
We provide a wide range of custom surface treatments and finishes for CNC machined camera parts, tailored to meet optical, mechanical, and aesthetic requirements. All finishes are applied with precision to ensure no impact on component fit or functionality, and our core options include:
- Anodizing (hard black anodizing, natural clear anodizing—our most popular for aluminum camera parts)
- Plating (chrome plating)
- Sandblasting & brushing
- Polishing & black oxide
- Passivation (for stainless steel)
- Laser engraving
Anodized aluminum camera parts deliver exceptional durability and corrosion resistance, making them ideal for both consumer and industrial imaging equipment. We work closely with clients to select the optimal finish for their specific application, whether for wear resistance, aesthetic appeal, or environmental protection.
Quality Assurance: Zero-Compromise for Precision Camera Parts
HLW is an ISO 9001 and IATF 16949 certified factory, with a rigorous quality control process that ensures 100% compliance with client specifications and industry standards. We understand that even the smallest deviation in a camera part can compromise imaging performance, so our quality assurance measures are integrated into every stage of production—from raw material inspection to pre-shipment testing.
Our Quality Control Process:
- 100% pre-shipment inspection: Every single dimension is checked using high-precision testing instruments, including CMM (Coordinate Measuring Machine), height gauge, metallurgical microscope, projector, altimeter, micrometer, and thread gages. A detailed shipment inspection report is provided for all orders.
- In-process PQC: Product Quality Control during the entire manufacturing process to identify and resolve issues early.
- Stress relief for thin-walled components: Custom vacuum chucks, stress-free fixturing, and HSM reduce heat transfer and cutting forces, eliminating deformation and ensuring dimensional stability for delicate thin-walled camera frames.
- Pre-stretched material sourcing: We use T651 tempered alloys for enhanced dimensional stability of complex camera components.
- Material compliance: 100% RoHS-compliant raw materials, with material certificates and SGS reports available on request.
We stand behind our products with a 100% satisfaction guarantee: if any part is outside tolerance or fails to meet your special specifications, we will remake and deliver the components for free, as fast as possible. Our track record speaks for itself—we have served leading automotive and imaging brands since 2016 with zero customer complaints, and boast a 99.9% customer satisfaction rate globally.
Flexible Ordering & Fast Delivery
HLW caters to all order sizes, with no MOQ (Minimum Order Quantity)—we accept 1+ piece orders for prototyping, short-run production, and large-volume mass production. Our streamlined manufacturing processes and skilled R&D team enable ultra-fast turnaround times, with rush services available for urgent requests:
- Quick quotes: Custom quotes provided within hours of receiving your design (we offer free DFM (Design for Manufacturing) analysis for all camera part designs).
- Sample lead time: 5–12 days for custom prototypes (CNC machined aluminum camera parts).
- Mass production lead time: 15–30 days (1–2 weeks for standard orders; 3–5 days for rush services).
- Shipping: On-time worldwide delivery via UPS, DHL, FedEx, TNT, etc., with 2–3 working days for international shipping.
- Packing: Enhanced carton and wooden case packaging for safe transit of precision components.
For orders below 5,000 pieces, clients typically receive their CNC machined camera parts in less than three weeks (production + shipping). We also offer full design support, including CAD draft services, and accept all major design file formats: PRO/E, Auto CAD, Solid Works, IGS, UG, and CAD/CAM/CAE.
Additional Services & Post-Sale Support
HLW is a one-stop supplier for CNC machined camera parts, offering end-to-end services to simplify your production process:
- Free DFM analysis: Our senior design team optimizes tooling paths and machining processes to reduce costs and improve part performance.
- Rapid prototyping: CNC machined camera prototype parts (e.g., φ180mm*60mm AL6061-T6 prototypes) for design testing and modification before mass production.
- Integrated assembly: Cleanroom optical-grade assembly and sub-component installation (O-rings, bearings, fasteners) to ensure dust-free, smooth operation of focus helicoids and other moving parts.
- 24/7 online service: Our team is available around the clock to answer inquiries and provide support.
- Logistics support: Custom shipping and logistics solutions for global clients.
Our post-sale support is second to none—we take full responsibility for our precision machined parts and provide ongoing assistance for all orders. We have manufactured thousands of CNC machined camera components for over 60 specialized photography and imaging brands worldwide, delivering more than 20,000 custom camera parts to date.
Why Choose HLW for Your CNC Machined Camera Parts?
- 15+ years of precision CNC machining expertise: Specialized in imaging and optical components with a proven track record of global client satisfaction.
- World-class equipment & in-house capabilities: 3/4/5-axis CNC milling, Swiss machining, wire EDM, and more—no outsourcing, consistent quality.
- Ultra-tight tolerances & structural stability: Engineered for high-performance imaging, with zero micro-vibrations and perfect optical alignment.
- Comprehensive material & finish options: 40+ materials and finishes, all RoHS-compliant, tailored to your camera part’s unique needs.
- Flexible ordering & fast turnaround: No MOQ, rush services, and quick prototyping for fast design iteration.
- ISO-certified quality & 100% inspection: Zero-compromise quality control with free remakes for non-compliant parts.
- One-stop solutions: Design, machining, finishing, assembly, and shipping—all under one roof.
Contact Us for Custom CNC Machined Camera Parts
Whether you need a single prototype camera part, short-run production for a new imaging device, or large-volume manufacturing for professional camera components, HLW has the expertise, equipment, and commitment to precision to deliver exactly what you need. Our team of skilled engineers will work with you to optimize your design for CNC machining, ensuring cost-effectiveness and superior performance.
Get your custom quote today:
- Phone: +86 18664342076
- Email: info@helanwangsf.com
We specialize in custom CNC machined aluminum camera parts, thermal imager components, and high-precision metal/plastic camera components—your trusted partner for precision imaging manufacturing in China.
