Copper bushings, also referred to as sleeve bearings or plain bearings, are precision-engineered cylindrical components widely used in mechanical systems to reduce friction between rotating shafts and stationary parts, enhance equipment stability, and extend service life. CNC machining has become the core manufacturing method for high-precision copper bushings, delivering consistent dimensions, smooth surface finishes, and customizable designs for diverse industrial applications. At HLW, we specialize in CNC machining copper bushings with customized processes tailored to material properties and application demands, ensuring reliable performance for your projects. For inquiries about copper bushing machining, contact us at +86 18664342076 or info@helanwangsf.com.
What Are CNC Machined Copper Bushings

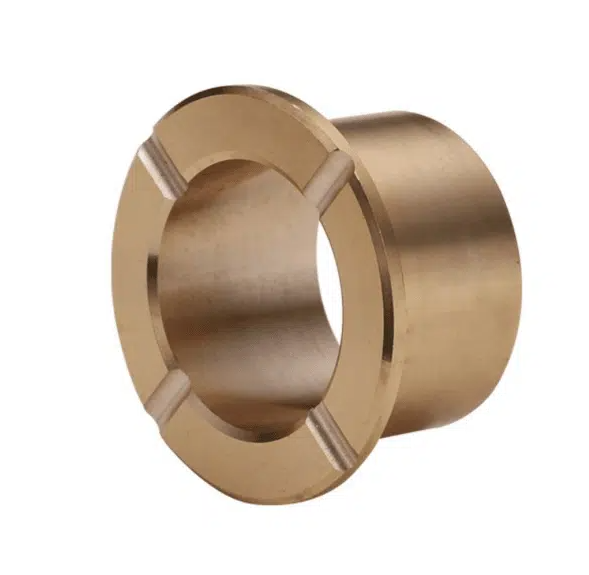

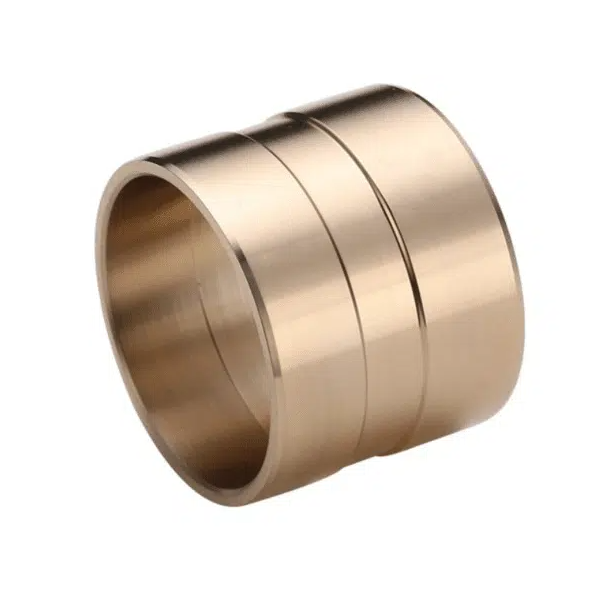

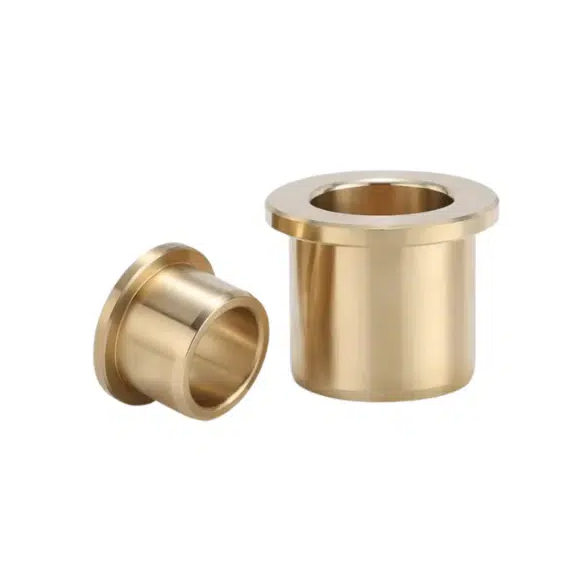

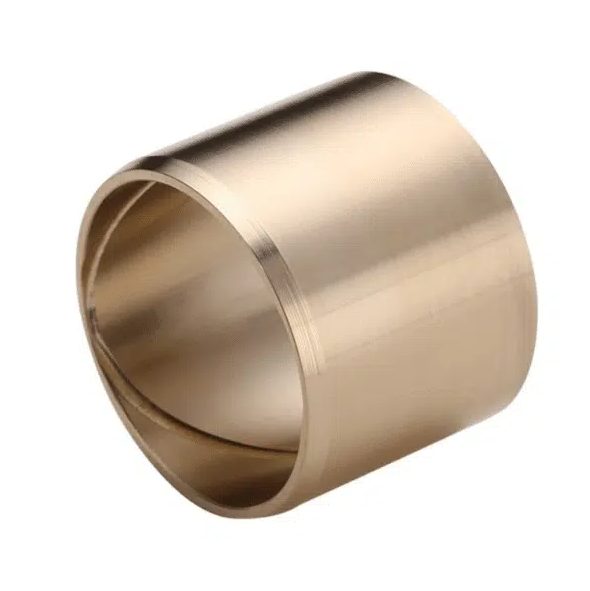

CNC machined copper bushings are precision components manufactured via computer numerical control machining, crafted from pure copper or copper alloys like bronze, brass, and beryllium copper. These bushings feature excellent wear resistance, corrosion resistance, thermal conductivity, and load-bearing capacity, making them ideal for high-friction, heavy-load, and harsh-environment applications. Common structural types include plain cylindrical bushings, flanged bushings, thrust bushings, and split bushings, each designed for specific load conditions and installation needs. Flanged sleeve copper bushings, a popular precision product, offer precise positioning and axial load absorption, widely used in pumps, motors, and gear systems.
Key Copper Alloys for CNC Machined Bushings
Selecting the right copper alloy is critical for bushing performance, as different grades vary in strength, machinability, corrosion resistance, and application suitability. Below are the most widely used alloys for CNC machined copper bushings:
1. Bronze Alloys (C93200, C95400, C86300)
Bronze is the top choice for bushing manufacturing, offering high strength, superior wear resistance, and excellent corrosion protection.
- C93200 (SAE 660 bearing bronze): Contains 6-8% lead, ideal for high-friction and high-wear general industrial applications with good machinability.
- C95400 aluminum bronze: Delivers high strength and exceptional seawater corrosion resistance, perfect for marine and heavy-duty equipment.
- C86300 manganese bronze: Provides superior impact resistance and load capacity, suitable for heavy-load machinery.
2. Pure Copper (C110, C101, C102)
Pure copper boasts ultra-high electrical and thermal conductivity, strong corrosion resistance, and good ductility. However, its low tensile strength and soft texture make it prone to burrs and chip jamming during machining, requiring sharp tools and efficient cooling. It is mainly used for electrical connectors, heat exchangers, and bus bars.
3. Brass Alloys (C260, C360, C464)
Brass features excellent machinability, moderate strength, and moderate corrosion resistance, with zinc added to enhance structural durability. Free-machining brass C360 enables rapid machining with minimal tool wear, widely used for valves, fittings, and fasteners.
4. Special Copper Alloys
- Tellurium copper (C14500): Retains high conductivity while improving machinability, ideal for electrical components and switchgear.
- Beryllium copper (C17200, C17500): Offers ultra-high strength, fatigue resistance, and non-sparking properties, used in aerospace precision connectors and non-sparking tools.
Complete CNC Machining Process for Copper Bushings
The manufacturing of CNC machined copper bushings combines casting and precision machining to ensure dense structure and dimensional accuracy. The standard process flow is as follows:
- Material Selection: Choose qualified copper alloys based on application requirements, such as bearing bronze for general use or aluminum bronze for marine environments.
- Casting (Centrifugal Casting Preferred): Centrifugal casting is widely used for copper bushings, using centrifugal force to distribute molten metal evenly, reducing porosity and ensuring dense material structure and high mechanical properties.
- Cooling & Solidification: Let the castings cool naturally to form stable blanks for subsequent machining.
- Rough Machining: Remove excess material from castings via CNC turning and milling to form basic bushing contours.
- Heat Treatment: Conduct annealing or tempering to improve hardness, strength, and dimensional stability of bushings.
- Precision CNC Machining: Use high-precision CNC equipment to process inner diameter, outer diameter, length, flanges, oil grooves, and other features to meet tight tolerances.
- Surface Finishing: Perform polishing, grinding, or coating to enhance surface smoothness, corrosion resistance, and wear resistance.
- Quality Inspection: Test dimensions, surface finish, and mechanical properties to ensure compliance with specifications.
- Packaging & Delivery: Package qualified products securely for shipment, with recycled copper materials reused in production.
Critical CNC Machining Tips for Copper Bushings
Machining copper bushings requires optimized parameters and tooling to address material-specific challenges like soft texture, chip adhesion, and tool wear. Key best practices include:
- Tool Selection: Use sharp high-speed steel or carbide tools; diamond-coated tools are recommended for high-hardness bronze alloys to reduce wear and ensure surface quality.
- Speed & Feed Control: Adopt moderate cutting speeds and stable feeds to avoid overheating, material sticking, and burr formation.
- Coolant & Lubrication: Apply sufficient coolant throughout machining to dissipate heat, prevent material adhesion, and extend tool life.
- Chip Evacuation: Clear elongated or fine chips timely to avoid jamming cutting tools and damaging workpiece surfaces.
- Tolerance Control: Standard tolerances range from ±0.05 mm to ±0.1 mm; precision components require ±0.01 mm to ±0.02 mm with advanced CNC setups.
Advantages of CNC Machined Copper Bushings
CNC machined copper bushings offer multiple performance and production benefits over traditional processed products:
- Unmatched Precision: CNC machining ensures consistent dimensions and tight tolerances, guaranteeing perfect fit in machinery.
- Customization Flexibility: Customize size, material, flanges, oil grooves, and graphite plugs for self-lubrication to meet unique application needs.
- Excellent Durability: Copper alloys provide superior wear, corrosion, and load resistance, extending equipment service life.
- Wide Temperature Resistance: Operate stably from -40°C to +400°C, adapting to extreme working conditions.
- Self-Lubricating Options: Graphite-embedded copper bushings reduce maintenance needs and friction, suitable for hard-to-lubricate scenarios.
Typical Applications of CNC Machined Copper Bushings
CNC machined copper bushings are widely used across industries due to their versatile performance:
- Marine Industry: Ship propeller shafts, pump components, valve stems, and underwater fittings, leveraging seawater corrosion resistance.
- Heavy Machinery: Excavator pivot bushings, mining equipment wear plates, and gearbox bearings for heavy-load and high-wear conditions.
- Automotive & Aerospace: Automotive steering systems, transmission components, aircraft landing gear, and precision actuators.
- Hydraulic & Pump Systems: Cylinder bushings and pump parts for smooth operation and friction reduction.
- Electrical & Petrochemical: Electrical connectors, non-sparking tools, and valve components for corrosive environments.
How to Select the Right CNC Machined Copper Bushing
To choose the optimal copper bushing for your application, consider these key factors:
- Load Conditions: Heavy-duty applications use high-strength alloys like aluminum bronze or manganese bronze; general uses adopt leaded tin bronze.
- Operating Speed: High-speed systems require excellent wear-resistant materials and fine surface finishes.
- Working Environment: Marine or corrosive settings prioritize aluminum bronze with superior corrosion resistance.
- Lubrication Needs: Select self-lubricating graphite copper bushings for poor lubrication conditions.
- Precision Requirements: High-precision equipment needs CNC machined bushings with tight tolerances and smooth surfaces.
Conclusion
CNC machining copper bushings are indispensable precision components in modern machinery, combining the excellent properties of copper alloys with the accuracy of CNC technology to deliver reliable friction reduction, load bearing, and corrosion resistance solutions. At HLW, we provide custom CNC machined copper bushings with professional material selection, optimized machining processes, and strict quality control, catering to marine, automotive, aerospace, heavy machinery, and other industrial needs. For high-quality copper bushing machining services or customized solutions, contact us at +86 18664342076 or info@helanwangsf.com.
FAQs About CNC Machining Copper Bushing
- What is the best copper alloy for bushings?Bearing bronze (C93200) is ideal for general use; aluminum bronze (C95400) suits marine and heavy-load applications; manganese bronze (C86300) is for high-impact scenarios.
- Can copper bushings be customized?Yes, HLW offers custom CNC machined copper bushings in size, material, flanges, oil grooves, and self-lubricating designs.
- What tolerances can CNC machining achieve for copper bushings?Standard tolerances: ±0.05 mm to ±0.1 mm; precision components: ±0.01 mm to ±0.02 mm.
- Are copper bushings self-lubricating?Standard copper bushings need oil lubrication; graphite-embedded copper bushings are self-lubricating for low-maintenance use.
- What industries use CNC machined copper bushings most?Marine, heavy machinery, automotive, aerospace, hydraulic, and petrochemical industries are the main users.
