CNC Machining of Flanges: Types, Processes, Standards, and Precision Solutions

Introduction

Flanges are critical annular components used to connect pipes, valves, vessels, and mechanical equipment, enabling secure, leak‑proof, and serviceable joints in oil & gas, chemical, power generation, water treatment, and industrial manufacturing systems. CNC machining of flanges delivers consistent dimensional accuracy, tight tolerances, superior surface finishes, and reliable sealing performance that meets strict international standards such as ASME B16.5, ASME B16.47, API 6A, DIN, and JIS. At HLW, we specialize in custom CNC machined flanges with advanced equipment, strict quality control, and optimized processes to support high‑precision and high‑volume production requirements. Contact us: +86 18664342076 | info@helanwangsf.com.

What Is a Flange and How Do Flange Connections Work?

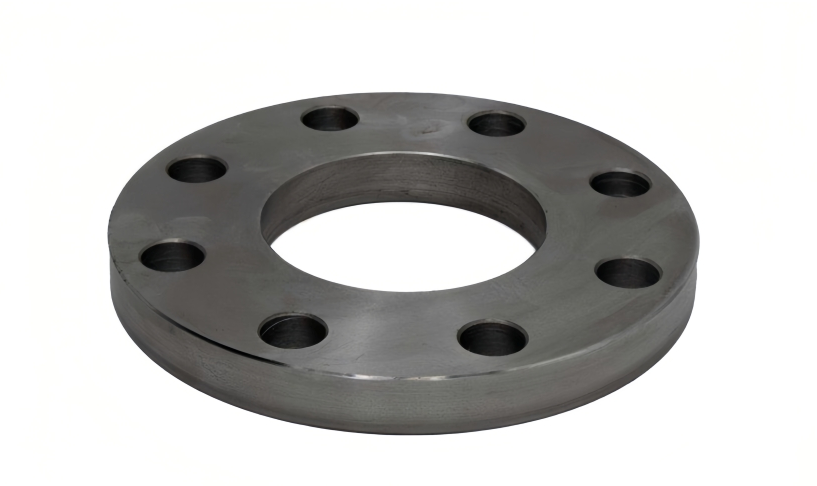

A flange is a flat or raised circular disc with bolt holes around the perimeter, designed to withstand pressure, temperature, and mechanical loads while enabling repeated assembly and disassembly. A standard flange connection relies on four core elements:

• Flange bodies: Provide structural rigidity and alignment.
• Gaskets: Create a tight seal between mating faces.
• Bolts and nuts: Apply clamping force to compress gaskets.
• Flange faces: Determine sealing efficiency and pressure compatibility.

Sealing is achieved by bolt torque that compresses the gasket to fill micro‑unevenness on flange faces, preventing both gasket permeation and interface leakage. Proper installation includes alignment, gasket placement, controlled bolt tightening, and post‑assembly leak testing.

Common Flange Types and Applications

CNC machined flanges are produced in multiple types to suit pressure, temperature, assembly, and maintenance needs:

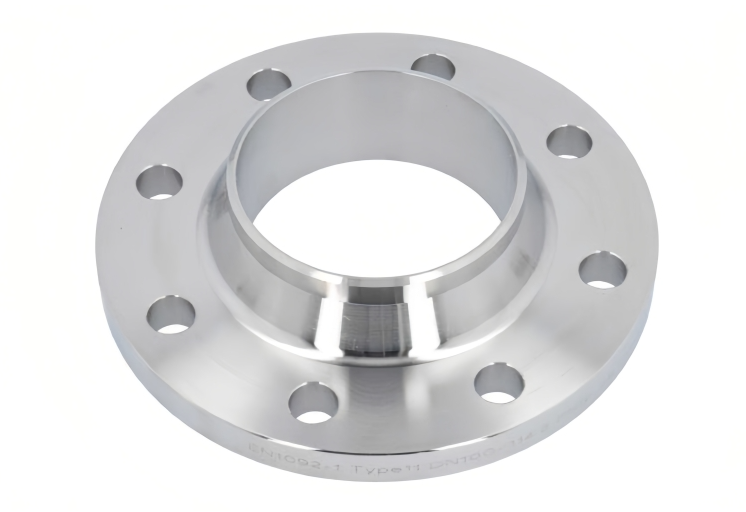

1. Weld Neck FlangeFeatures a long tapered hub for smooth stress transition; ideal for high‑pressure, high‑temperature, and critical systems such as oil pipelines and power plants.
2. Slip‑On FlangeSlides over the pipe and is welded internally and externally; cost‑effective and easy to align, widely used for low‑to‑medium pressure applications.

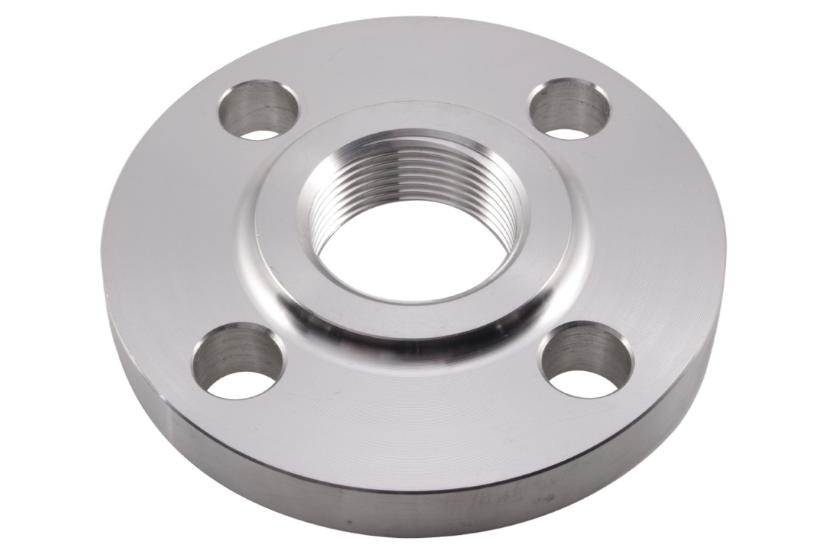

3. Threaded FlangeHas internal or external threads for screw‑on installation without welding; suitable for low‑pressure systems requiring frequent disassembly.
4. Blind FlangeSolid disc used to seal pipe ends, isolate systems, perform pressure testing, or reserve future expansion points.
5. Lap Joint FlangeLoose‑backing design for easy rotation and alignment; preferred in systems needing frequent maintenance.
6. Ring‑Type Joint (RTJ) FlangeEquipped with a metal ring gasket groove; delivers ultra‑reliable sealing for extreme high‑pressure environments in oil & gas upstream operations.
7. Orifice FlangeIntegrated with pressure ports for flow metering and fluid/gas rate measurement in pipeline systems.

Flange Face Types and Sealing Performance

Flange face geometry directly impacts sealing capacity and application suitability:

• Raised Face (RF): Concentrates gasket compression; widely used for medium‑to‑high pressure systems (Class 150–1500).
• Flat Face (FF): Full surface contact; ideal for low‑pressure (≤150 psi) brittle materials such as cast iron and PVC.
• Tongue and Groove (T&G) / Male and Female (M&F): Self‑locating designs enhance gasket retention and resist blow‑out.
• RTJ Face: Precision‑machined groove for metal ring gaskets; used above 1500 psi in harsh conditions.

Key Dimensions and Standards for CNC Machined Flanges

CNC machining strictly follows standardized dimensions to ensure interchangeability and performance:

• Nominal Pipe Size (NPS/DN): Ranges from ½” (DN15) to 24” (DN600) under ASME B16.5; larger sizes follow ASME B16.47.
• Bolt Circle Diameter (BCD): Precisely milled for uniform bolt alignment.
• Bolt Holes: Drilled and chamfered with standard clearance (bolt diameter + 1/8”).
• Pressure Classes: Class 150 (up to 285 psi), Class 300 (up to 740 psi), Class 600 (up to 1480 psi), Class 1500 (up to 3700 psi) at 100°F.
• Thickness: Increases with pressure class and NPS; e.g., Class 150 small flanges ~0.25”, Class 1500 large flanges ≥1”.

Core CNC Machining Processes for Flanges

HLW uses integrated CNC machining technologies to produce flanges with tight tolerances (±0.01mm) and premium surface quality:

1. CNC Turning Machines outer diameter, inner bore, and tapered hubs with high concentricity; essential for weld neck and high‑precision flanges.
2. CNC Milling & Face Milling Creates flat, uniform sealing faces, grooves, and complex contours; ensures gasket fit and sealing stability.
3. CNC Drilling & Tapping Drills accurate bolt holes and cuts internal threads for fastener compatibility; supported by 4‑axis indexing for even hole distribution.
4. CNC Grinding Provides mirror‑finish sealing surfaces with low roughness (Ra 3.2–6.3μm) for high‑pressure and critical applications.
5. CNC Grooving Machines RTJ, tongue‑and‑groove, and recessed faces to lock gaskets and prevent misalignment.
6. Deburring & BlastingCleans surfaces, removes burrs, and prepares for coating or assembly.

Full CNC Flange Production Flow

1. Material Selection: Carbon steel, stainless steel, alloy steel, or duplex stainless steel based on pressure, temperature, and corrosion needs.
2. Blank Preparation: Forged or cast blanks for structural integrity; forged flanges offer higher density and strength.
3. Heat Treatment: Annealing, normalizing, or quenching to relieve stress and improve mechanical properties.
4. CNC Rough Machining: Removes excess material to near‑net shape.
5. CNC Finish Machining: Achieves final dimensions, tolerances, and surface finishes.
6. Inspection: Dimensional checks, surface roughness measurement, pressure testing, and NDT (ultrasonic, magnetic particle) for critical parts.
7. Surface Treatment & Packaging: Anti‑corrosion coating, cleaning, and secure packaging.

Advantages of CNC Machining for Flanges

• Unmatched Precision: Consistent dimensions and tight tolerances eliminate assembly issues and leaks.
• High Efficiency: Automated multi‑axis machining reduces cycle times and supports mass production.
• Flexibility: Quickly switches between flange types, sizes, and face designs via program changes.
• Superior Sealing Surfaces: Smooth, flat faces ensure reliable gasket compression and long service life.
• Compliance: Strictly adheres to ASME, API, DIN, and GB standards for global applications.

HLW CNC Flange Machining Capabilities

HLW is equipped with high‑rigidity CNC machining centers, lathes, and 4‑axis indexing systems to process flanges from DN15 to large‑diameter custom sizes. Our strengths:

• Custom design and reverse engineering support.
• Materials: carbon steel, stainless steel 304/316, alloy steel, duplex steel.
• Full in‑house process: turning, milling, drilling, tapping, grinding, heat treatment, inspection.
• Quality control: material certification, CMM measurement, pressure testing, full traceability.
• Fast lead times for prototypes and batch production.

Conclusion

CNC machining of flanges is the foundation of safe, reliable, and leak‑free piping and mechanical systems. From standard weld neck, slip‑on, and threaded flanges to high‑pressure RTJ and orifice flanges, precision CNC processes guarantee compliance with international standards and performance under extreme conditions. HLW delivers customized, high‑accuracy CNC machined flanges with professional engineering, stable quality, and cost‑effective solutions for industrial clients worldwide.
