Medical Parts CNC Machining
Introduction
Medical Parts CNC Machining is the foundational manufacturing technology for modern healthcare, delivering micron-level precision, biocompatible components, and strict regulatory compliance for life-saving medical devices, surgical instruments, implants, and diagnostic equipment. As global demand for personalized, high-reliability medical parts rises, CNC machining enables rapid prototyping, flexible low-volume to mass production, and patient-specific customization that aligns with the most stringent international healthcare standards. This comprehensive guide covers core processes, certified materials, key applications, unique advantages, and future trends of medical parts CNC machining, positioning HLW as your trusted global partner for end-to-end medical manufacturing solutions.
What Is Medical Parts CNC Machining?
Core Definition
Medical Parts CNC Machining is a computer-controlled subtractive manufacturing process that fabricates custom, high-precision components from medical-grade metals and plastics. It eliminates manual error, ensures consistent part repeatability, and meets the tight tolerances, sterilization requirements, and biocompatibility standards critical to patient safety and medical device performance.
Quality & Regulatory Certifications
HLW operates under globally recognized medical manufacturing certifications, including ISO 9001:2015 and AS9100, with temperature-controlled, dust-free production environments, full material traceability, and multi-stage quality inspections to comply with FDA and international healthcare regulations.
Key Benefits of CNC Machining for Medical Parts
- Ultra-High Precision & Tight TolerancesCNC machines deliver accuracy down to 0.0001 inches (0.0025mm), essential for implants, micro surgical tools, and diagnostic components that demand zero deviation.
- Rapid Prototyping & Short Lead TimesProduce production-grade prototype parts in as fast as 1 day, accelerating medical device R&D and time-to-market.
- Free DFM FeedbackCustom Design for Manufacturability analysis with every quote to optimize part design, reduce production costs, and improve performance.
- Biocompatible Material VersatilityCompatibility with sterilizable, corrosion-resistant, and body-safe materials for direct patient contact applications.
- Scalability & RepeatabilityConsistent production from one-off custom parts to high-volume batches, ideal for standardized components like bone screws and surgical instruments.
- Advanced Post-ProcessingAnodizing, plating, polishing, and antimicrobial treatments to enhance surface finish, sterilization resistance, and part durability.
- Personalized Medicine SupportFabricate patient-specific implants, prosthetics, and surgical tools using 3D scanning and anatomical data.
Core CNC Machining Processes for Medical Components
HLW deploys industry-leading processes to manufacture simple to highly complex medical parts:
- CNC Milling (3-Axis & 5-Axis Indexed)Cuts solid metal/plastic blocks into precision parts; 5-axis milling handles complex contours (spinal implants, orthopedic components) in a single setup.
- CNC Turning & Mill-Turn MachiningCombines lathe and milling capabilities for cylindrical parts (bone screws, catheters) with live tooling for multi-feature fabrication.
- Swiss CNC MachiningSpecialized for micro, slender parts (minimally invasive surgical tools) with superior precision for high length-to-diameter ratios.
- Electrical Discharge Machining (EDM)Sinker/Wire EDM for hard metals, micro holes, and sharp internal corners (vena cava clips, spinal cages) without mechanical deformation.
- Micro MachiningProduces ultra-small parts down to 0.019 inches (0.50mm) for medical wearables and laser eye surgery components.
- Laser MachiningMicro-drilling and engraving for delicate parts with fine details, no contact stress.
Medical-Grade Materials for CNC Machined Parts
HLW machines a full portfolio of sterilizable, biocompatible materials approved for medical use:
- Metals: Titanium (6Al-4V), 316/17-4PH Stainless Steel, 6061-T6 Aluminum, Inconel, Invar, Kovar, Nitinol (shape-memory alloy)
- High-Performance Plastics: PEEK, PEI (Ultem), PTFE, Kel-F PCTFE, medical-grade nylons
- Composites: Lightweight, high-strength composites for custom prosthetics and surgical devices
All materials offer corrosion resistance, heat/chemical tolerance, and sterilization compatibility for long-term medical use.
Top Applications of Medical Parts CNC Machining
CNC machining powers critical components across every healthcare sector:
- Surgical Instruments & Minimally Invasive ToolsScalpels, forceps, laparoscopic tools, Lasik surgery components, biopsy cutters, and trocar/cannula systems.

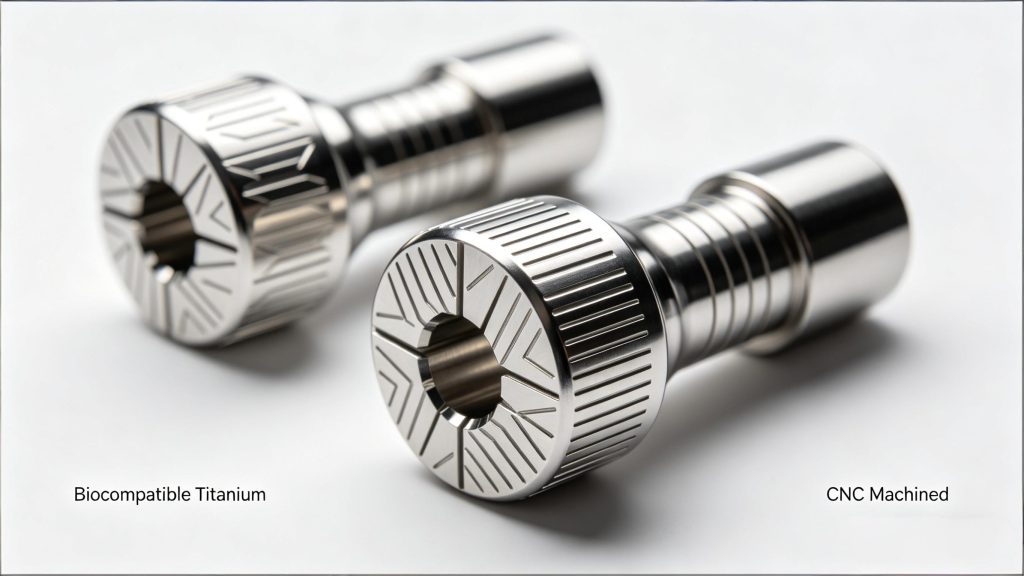

- Medical ImplantsOrthopedic (hip/knee replacements), dental, spinal fusion cages, bone plates/screws, and titanium implantable devices.
- Prosthetics & OrthoticsCustom patient-specific prosthetic limbs, braces, and supportive devices with smooth, biocompatible surfaces.
- Diagnostic & Imaging EquipmentMRI/CT scanner collimators, X-ray anodes, blood gas analyzers, and laboratory diagnostic components.
- Medical Device Enclosures & HousingsDust-proof, EMI-shielded housings for monitors, ventilators, and portable medical devices.
- Critical Care & Life-Support PartsVentilator components, IV pump parts, fluid delivery systems, cardiac device gears, and heart pump impellers.
- Micro Devices & WearablesBiosensors, micro diagnostic tools, and miniaturized wearable medical components.
- Laboratory & Research EquipmentDNA analysis tools, centrifuge components, and pharmaceutical processing parts.
Limitations & Proactive Mitigation Strategies
HLW resolves common medical CNC machining challenges with advanced solutions:
- Complex Geometries: 5-axis machining and specialized tooling for undercuts and deep cavities.
- Material Processing: Optimized cutting parameters for heat-sensitive/hard-to-machine materials.
- Production Speed: Automated pallet systems and lights-out manufacturing for faster batch production.
- Size Limits: Multi-scale CNC machines for micro parts to large structural frames.
- Surface Finish: In-house polishing to meet strict medical surface specifications.
- Operator Expertise: Certified, trained CNC technicians for programming and quality control.
The Future of CNC Machining in Medical Manufacturing
The medical CNC machining industry is evolving with these transformative trends:
- Automation & Digitalization: AI/ML, robotics, and CAD/CAM integration streamline workflows and reduce errors.
- Advanced Miniaturization: Micro-fabrication for minimally invasive devices and targeted drug delivery.
- Deeper Customization: Seamless integration with 3D medical imaging for patient-specific parts.
- Stricter Compliance: Full traceability and documentation for evolving global healthcare regulations.
- Novel Materials: Machining capabilities for next-gen biocompatible materials.
- Hybrid Manufacturing: CNC machining combined with additive manufacturing for complex high-performance parts.
Why Choose HLW for Medical Parts CNC Machining?
HLW is a global leader in medical CNC machining, serving medical device OEMs, startups, and healthcare manufacturers worldwide:
- Temperature and dust-controlled facilities for ultra-precision results
- Full suite of 5-axis milling, EDM, micro machining, and Swiss turning capabilities
- ISO/AS9100 certified quality management and full material traceability
- Free DFM feedback and 1-day rapid prototyping
- Custom solutions for implants, surgical tools, diagnostic equipment, and micro parts
- Responsive global support and on-time delivery
Call to Action
For high-precision, regulatory-compliant Medical Parts CNC Machining solutions tailored to your healthcare manufacturing needs, partner with HLW today. Our certified CNC experts provide free DFM analysis, competitive quotes, and reliable delivery for prototypes, low-volume runs, and mass production. Contact us at +86 18664342076 or email info@helanwangsf.com to discuss your project and accelerate your medical device to market.
