Copper Parts CNC Custom Machining: Precision Solutions for High‑Performance Industrial Components

Copper Parts CNC Custom Machining
Copper Parts CNC Custom Machining

Introduction

Copper Parts CNC Custom Machining is the premier manufacturing process for fabricating high-precision copper components that require exceptional electrical and thermal conductivity, corrosion resistance, and tight dimensional tolerances. As a specialized manufacturer of custom copper CNC machining, HLW delivers end-to-end, certified manufacturing solutions for mission-critical applications across aerospace, medical, electronics, automotive, marine, and military industries. With decades of precision machining experience, advanced multi-axis equipment, and strict quality control, we transform custom copper part designs into production-ready components—supporting everything from one-off prototypes to full-scale mass production with consistent quality and fast turnaround.

1. Key Advantages of Copper for CNC Custom Machining

Copper stands out as a top-tier material for CNC custom machining due to its unique combination of physical and functional properties, making it irreplaceable for high-demand industrial applications.

Unmatched Conductivity

Copper offers second-to-only-silver electrical and thermal conductivity, making it the first choice for power transmission, thermal management, and high-frequency electronic components.

Superior Material Durability

It features high ductility and malleability to support complex geometric machining, natural corrosion resistance for long service life, and inherent antimicrobial properties ideal for medical devices.

Aesthetic & Functional Versatility

Copper delivers a visually appealing finish and maintains performance in harsh environments, with flexible workability for both simple fittings and intricate precision parts.

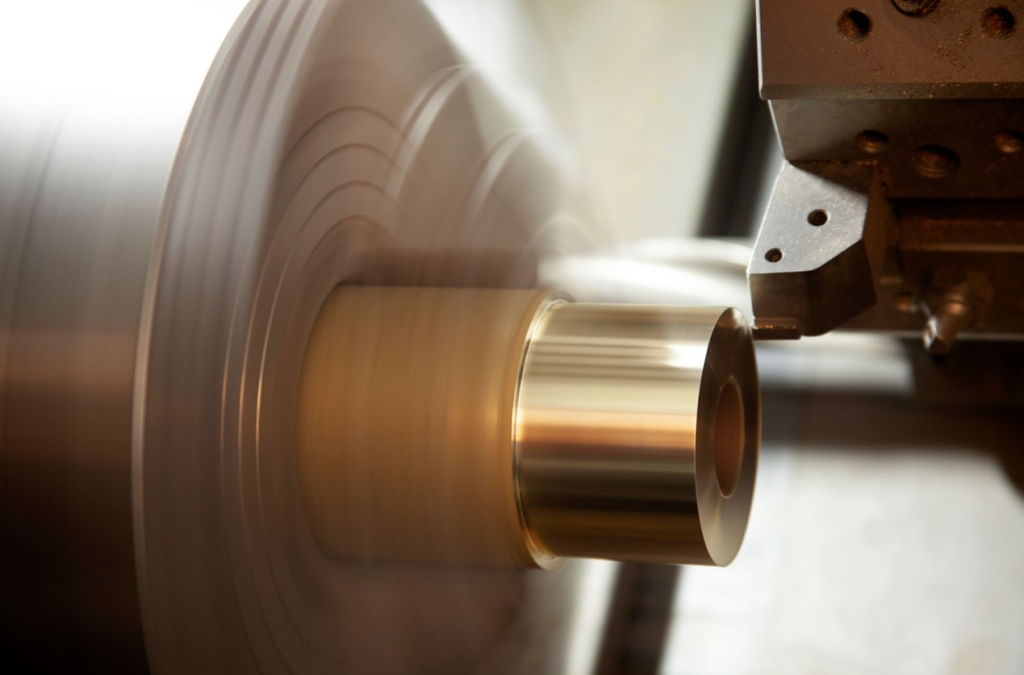

Precision Copper Components CNC Milling Turning
Precision Copper Components CNC Milling Turning

2. Premium Copper Grades & Alloys for CNC Machining

HLW machines a full range of pure copper grades and high-performance copper alloys to match diverse application requirements, with standardized material selection for optimal machinability and performance.

Pure Copper Grades

  • C101 (Oxygen-Free Copper): 99.99% ultra-pure copper with exceptional high conductivity (HC), used for busbars, waveguides, and coaxial cables.
  • C110 (ETP Copper): 99.90% pure copper, cost-effective and widely used for general electrical parts, with better machinability than C101.
  • T2 Copper: Balances high conductivity and reliable machinability, the most practical choice for power delivery and electronic thermal components.

Copper Alloys

  • Brasses: Copper-zinc alloys with enhanced strength, ductility, and corrosion resistance.
  • Phosphor Bronzes: Copper-tin alloys with high hardness and wear resistance, suitable for gears and bearings.
  • Nickel-Silvers: Copper-nickel-zinc alloys with superior corrosion resistance compared to brass.
  • Copper-Nickel Alloys: Marine-grade alloys with excellent ductility and corrosion resistance for harsh marine environments.
  • Beryllium Copper (C17200): High-strength alloy with fatigue/wear resistance, used for springs and electrical contacts (machined with strict toxic dust control).

3. HLW’s Copper Parts CNC Custom Machining Capabilities

We operate a full-service machining workshop equipped with advanced equipment and comply with global industrial standards, covering every stage of custom copper part production.

Core Machining Processes

  • Multi-axis CNC Milling & Turning: 3/4/5-axis machining for drilling, knurling, reaming, boring, face/peripheral/tapered milling, and complex contour processing.
  • EDM Services: 4-axis Wire EDM (0.006″–0.012″ wire diameter) and Sinker EDM for heat-free cutting of intricate cavities and sharp internal corners.
  • Complementary Processes: In-house brazing, welding, and custom assembly for one-stop manufacturing.

Precision & Certification Standards

  • Certifications: ITAR registered, AS9100:2016 Rev D, ISO 9001, ISO 13485, Mil-Spec, ANSI, ASME, RoHS compliant.
  • Tolerances: Down to ±0.001 in for ultra-precision components.
  • Part Size: Minimum 0.019 in, maximum 25.5 in × 25.5 in × 11.8 in; minimum wall thickness 0.030 in.

Surface Finishes & Post-Processing

  • Electropolishing for smooth, corrosion-resistant surfaces; silver/gold electroplating to prevent oxidation and retain conductivity.
  • Electroless nickel plating, passivation, bead blasting, powder coating, part marking, and press-fit assembly.

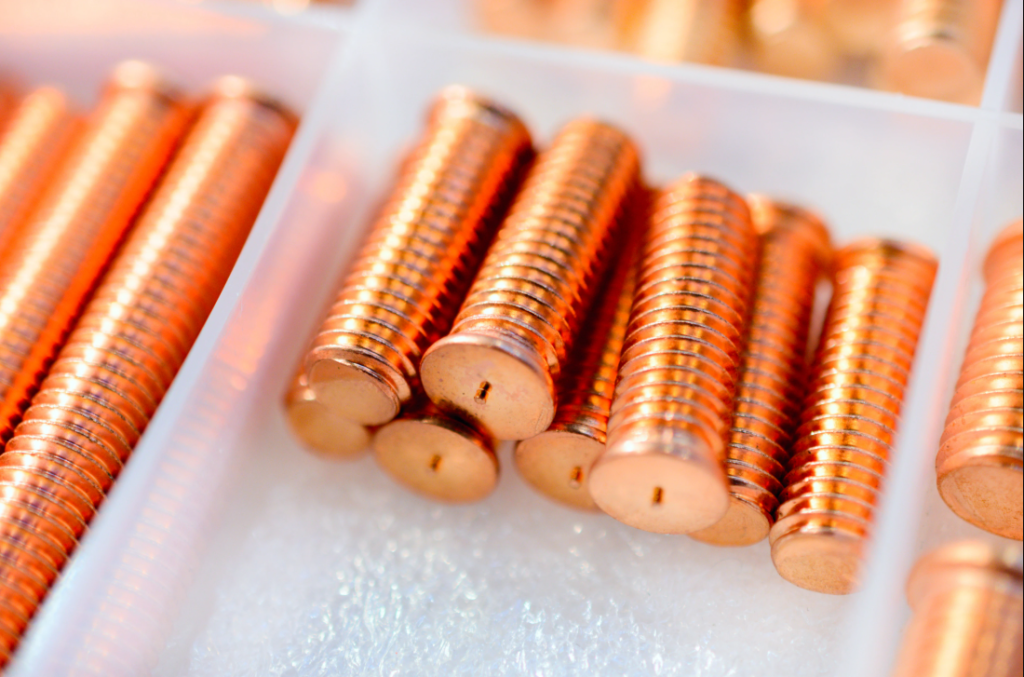

Custom Copper Parts CNC Machining by HLW
Custom Copper Parts CNC Machining by HLW

4. Typical Applications of Custom Machined Copper Parts

HLW’s custom copper CNC machined parts serve critical functions across major high-tech industries:

  • Electronics & Electrical: Busbars, grounding plates, connectors/terminals, RF/microwave components, high-frequency switches, circuit breakers.
  • Thermal Management: Heat sinks, heat exchangers for electronic cooling systems.
  • Medical: Antimicrobial instrument contacts and precision medical components.
  • Aerospace & Military: Structural brackets, housings, and mission-critical components.
  • Automotive & EV: Power delivery parts and wiring components for electric vehicles.
  • Marine & Industrial: Custom fluid fittings, valve bodies, and EDM electrodes.

5. Best Practices for Precision Copper CNC Machining

Copper’s soft, gummy nature requires specialized machining techniques to ensure precision, surface quality, and tool life—HLW follows industry-leading best practices for flawless results.

Tooling & Cutting Parameters

  • Use sharp, polished carbide 2-flute cutters with 18°–25° rake angle for clean shearing.
  • Adopt high RPM, moderate feed rates, and shallow cut depths; use cutting oil or silica-based coolant for heat control.

Chip Control & Heat Management

  • Deploy air blast or flood coolant to eliminate stringy copper chips and prevent re-cutting/work-hardening.
  • Maintain high chip load to avoid built-up edge (BUE) and surface smearing.

Workholding & Design Optimization

  • Minimize tool stick-out and maximize collet depth to reduce vibration.
  • Use soft jaws or custom fixtures to avoid surface marring; keep minimum wall thickness at ~0.5 mm to prevent deformation.

Troubleshooting

  • Regular tool replacement to combat premature wear from copper adhesion.
  • Immediate chip evacuation to avoid work-hardening and poor surface finishes.

6. Why Partner with HLW for Copper Parts CNC Custom Machining

  1. Decades of Expertise: Over 60 years of precision machining experience focused on copper and high-performance alloys.
  2. Full Certification Compliance: Meets strict aerospace, medical, and military quality standards.
  3. Rigorous Quality Control: In-house inspection for every prototype and production run.
  4. Flexible Production: Fast quote turnaround, supporting custom complex parts from prototyping to mass production.
  5. One-Stop Service: Integrates CNC machining, EDM, brazing, welding, and post-processing.
  6. Global Customer Support: Dedicated team for international buyers, with reliable global delivery.

Call to Action

For high-precision, certified Copper Parts CNC Custom Machining, HLW is your trusted global manufacturing partner. Whether you need custom prototypes, low-volume production, or full-scale manufacturing, our team delivers components that meet your strictest performance and tolerance requirements. Contact us today at +86 18664342076 or email info@helanwangsf.com to submit your RFQ and get a fast, personalized quote.
