As the heart of internal combustion engines, hydraulic systems, and industrial power units, pistons operate under extreme temperatures (up to 600°F), pressures (up to 1,000 psi), and continuous reciprocating motion. CNC machining of pistons is the foundation of manufacturing high-performance, long-lasting pistons that directly boost engine power, fuel efficiency, and reliability while reducing emissions and maintenance costs. With 15+ years of specialized experience in precision CNC manufacturing, HLW delivers end-to-end piston machining solutions for automotive, aerospace, marine, and industrial clients worldwide—combining cutting-edge equipment, strict quality control, and custom engineering to meet the tightest tolerances and most demanding application requirements.

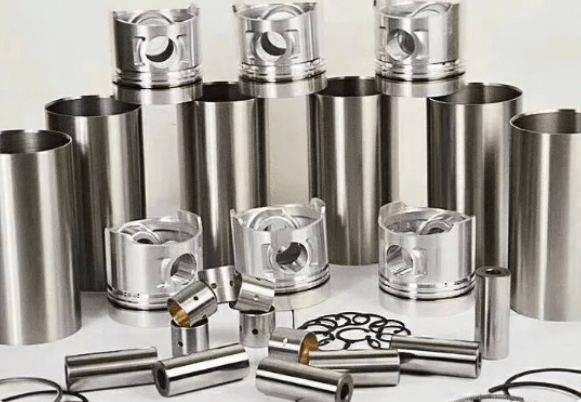

What Is CNC Machining of Pistons?
CNC machining of pistons is a high-precision manufacturing process that uses computer numerical control equipment to shape metal blanks into finished piston components with strict dimensional accuracy, surface finish, and structural integrity. Unlike traditional manual machining, CNC technology automates material removal, complex geometry creation, and quality verification, ensuring consistency across prototype and mass-production runs.
Core Role of Pistons in Engines
Pistons convert combustion energy into mechanical power, making their machining precision critical to:
- Maintain optimal engine compression ratios
- Reduce friction and component wear
- Ensure thermal stability under extreme operating conditions
- Prevent engine failure, blow-by, and excessive oil consumption
Key Requirements for Precision Piston Machining
Successful piston machining demands strict control over five core factors: material selection, surface finish, dimensional tolerances, thermal behavior, and tooling optimization—all of which directly impact piston performance and service life.
Piston Materials Selection & Machining Characteristics
Material choice is the first critical decision in piston machining, as each alloy offers unique strength, weight, thermal conductivity, and machinability properties. HLW specializes in machining all industry-standard piston materials with tailored cutting parameters.
Aluminum Alloys (Primary Choice)
Aluminum alloys dominate piston manufacturing for their lightweight design, excellent heat dissipation, and cost-effectiveness:
- 2618 Aluminum: High-temperature strength and fatigue resistance, ideal for racing and high-performance engines
- 4032 Aluminum: Low thermal expansion and superior wear resistance, perfect for standard automotive applications
- ZL101/7075 Aluminum: Cast and forged grades for balanced performance and mass production
- Machining benefits: Faster cutting speeds, lower tool wear, and efficient chip evacuation
Steel Alloys (Heavy-Duty Applications)
Steel pistons deliver unmatched durability for high-load engines:
- 4140 Steel: High strength for heavy-duty diesel engines
- 4340 Steel: Superior toughness and wear resistance for racing applications
- 8620 Steel: Case-hardening properties for commercial vehicle engines
- Machining considerations: Slower cutting speeds, robust cooling, and higher tool wear rates
Titanium & Specialty Alloys (High-End Uses)
Titanium pistons offer premium strength-to-weight ratio for aerospace, high-end racing, and military applications, requiring specialized cutting tools, precise speed/feed rates, and enhanced cooling strategies.
Piston Structure & Critical Machining Features
Every piston component requires targeted precision machining to fulfill its functional role, with HLW programming CNC tools to meet micron-level specifications for each feature.
Crown Machining
The piston crown forms the combustion chamber surface, requiring complex profile cutting (flat, concave, or domed shapes) to optimize combustion and heat dissipation. Typical tolerance: ±0.02mm.
Ring Groove Precision Machining
Ring grooves hold piston rings to seal combustion gases and prevent oil intrusion, requiring tight circular machining (tolerance: ±0.008mm) to avoid oil consumption and power loss.
Skirt & Pin Boss Machining
- Skirt: Guides piston movement in the cylinder, requiring precise diameter control (±0.005mm) and elliptical profiling to resist thermal deformation
- Pin Bosses: Houses the wrist pin, needing exact hole alignment (±0.002mm) for smooth power transfer
Complete CNC Machining Process for Pistons
HLW follows a standardized, optimized workflow to transform raw metal blanks into finished pistons, with 100% in-process and final inspection at every stage.
1. Preparation & Rough Machining
- Material defect inspection and certification
- Initial cutting to approximate dimensions
- Stress relief treatment to prevent post-machining distortion
2. 5-Axis CNC Milling
5-axis machining centers create complex piston geometries in a single setup, reducing setup time and improving accuracy for crown profiling, window milling, and weight reduction features.

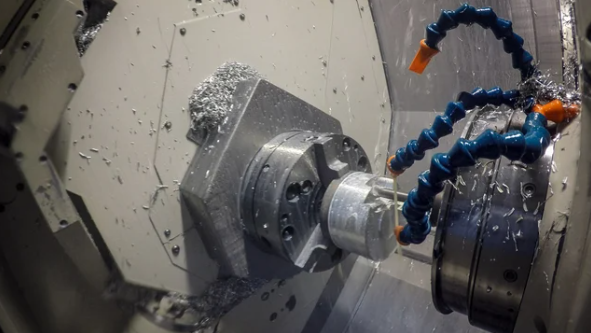

3. Precision CNC Turning
CNC turning achieves perfect cylindrical form for the piston skirt, outer diameter, and ring lands, with concentricity verification and surface finishing to meet Ra 0.4μm standards.
4. Oil Passage Drilling & Finishing
Specialized deep-hole and cross-hole drilling creates lubrication channels, with chamfering, deburring, and borescope inspection to ensure unobstructed oil flow.

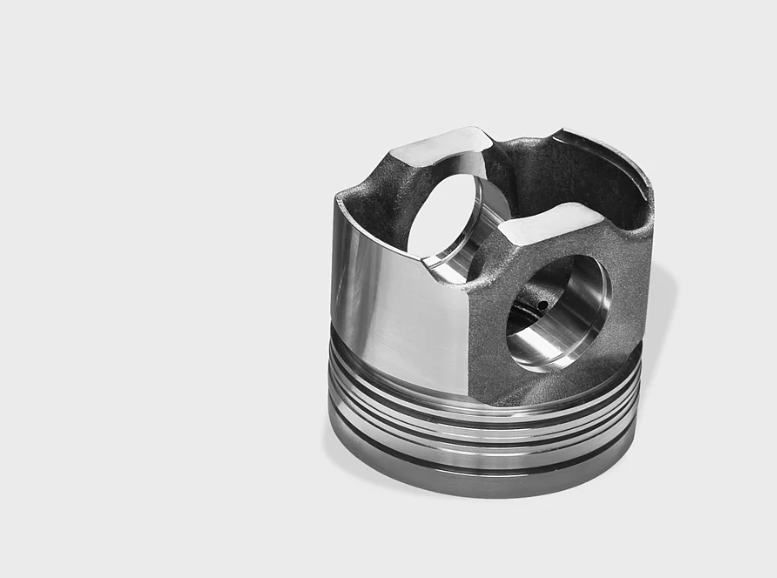

5. Surface Treatment & Coating
HLW applies industry-leading coatings to enhance piston performance:
- Hard anodizing for crown heat resistance
- Tin/zinc plating or graphite coatings for skirt anti-galling
- DLC (Diamond-Like Carbon) coatings for 40% friction reduction
- Thermal barrier coatings to reflect combustion heat
6. Quality Control & Inspection
Every piston undergoes rigorous verification using:
- CMM (Coordinate Measuring Machine) for dimensional accuracy
- Profilometers for surface roughness testing
- Roundness testers and ultrasonic testing for material integrity
- Acceptance criteria: ±0.01mm dimensional tolerance, 0.005mm max roundness
Advanced Technologies Enhancing Piston CNC Machining
HLW integrates next-generation technologies to elevate precision, efficiency, and consistency in piston machining:
5-Axis CNC Machining Centers
Enables complex geometry machining, simultaneous multi-surface cutting, and real-time dimensional probing to eliminate human error.
Smart Metrology & Industry 4.0 Integration
- IoT sensors for real-time process monitoring
- AI-driven predictive maintenance for equipment
- Digital twin simulation for process optimization
- Automated inspection and data analytics for quality control
Specialized Coating Technologies
Electroless nickel, KoolKote, and Tuff Skirt coatings deliver corrosion resistance, wear protection, and friction reduction for extreme operating environments.
Key Challenges in Piston CNC Machining & Solutions
Piston machining presents unique technical hurdles, with HLW implementing proven solutions to ensure 99.7% first-pass yield:
- Tolerance Control: Temperature-controlled workshops and thermal compensation systems maintain ±0.005mm precision
- Material Variations: Pre-machining hardness and composition testing to standardize cutting parameters
- Thermal Expansion: In-process temperature monitoring and stabilized material handling
- Tool Wear: Advanced coated tools and real-time wear detection systems
- Complex Geometry: 5-axis machining and custom fixturing for undercut and thin-wall features
Custom Pistons: Forged vs. Billet Machining
HLW offers both forged and billet custom piston machining to match unique engine requirements:
Forged Pistons
- Preformed blanks via high-pressure forging for enhanced material strength
- Shorter machining time, lower cost for high-volume production
- Ideal for standard and performance automotive applications
Billet Pistons
- Machined from solid aluminum pucks (2618 alloy)
- Full design flexibility for custom geometries, no forging die costs
- Faster design iterations for racing and specialized engines
- Ideal for low-volume, high-customization projects
Industry Applications of Precision CNC Machined Pistons
HLW’s CNC machined pistons serve critical sectors with tailored specifications:
- Automotive: Passenger vehicles, racing engines, commercial trucks
- Aerospace: Aircraft engines, APUs, certified aerospace-grade components
- Marine: Saltwater-resistant pistons for propulsion systems
- Industrial Machinery: Hydraulic/pneumatic actuators, power generation units, construction equipment
Future Trends in Piston CNC Machining
The piston manufacturing industry is evolving with emerging technologies:
- Additive Manufacturing: 3D printing for rapid prototyping and lightweight internal structures
- AI & Machine Learning: Real-time quality control and process optimization
- Sustainable Manufacturing: Recycled alloys, bio-based lubricants, and energy-efficient processes
- Hybrid/Electric Engine Adaptation: Lighter, thermally optimized pistons for hybrid powertrains
- Advanced Surface Treatments: Nano-scale texturing and plasma coatings for extreme durability
Why Choose HLW for Your Piston CNC Machining Needs
HLW is a trusted global partner for precision piston CNC machining, with core advantages that set us apart:
- 15+ years of specialized piston manufacturing expertise
- State-of-the-art 5-axis CNC machines and full metrology inspection equipment
- Custom forged/billet piston solutions for prototype to mass production
- Strict quality control compliant with international industry standards
- Competitive pricing, on-time delivery, and responsive overseas customer support
- Full material certification and traceability for every production run
Call to Action
Whether you need standard automotive pistons, custom racing components, or aerospace-grade precision parts, HLW’s CNC machining of pistons delivers unmatched quality and performance. Contact our expert team today to discuss your project requirements, request a free quote, or learn more about our custom piston solutions.
