Introduction

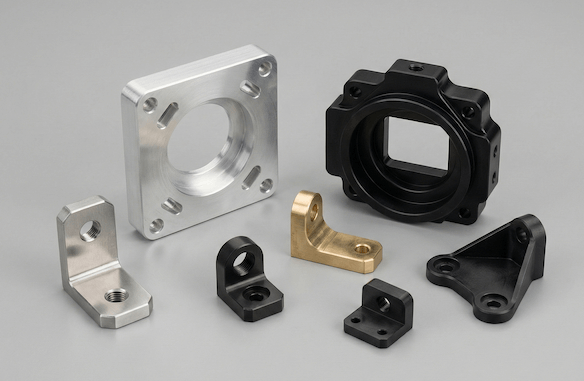

Custom CNC machining of aluminum brackets delivers high-precision, lightweight, and durable structural components tailored to exact industrial specifications. As a professional CNC machining manufacturer, HLW specializes in custom CNC machined aluminum brackets with premium surface treatments, tight tolerances, and flexible production scales—serving global buyers in medical, automotive, robotics, electronics, telecommunications, and more. We combine advanced multi-axis machining, strict quality control, and customer-centric services to turn your CAD designs into production-ready aluminum brackets that meet performance, durability, and assembly requirements.
Why Choose CNC Machined Aluminum Brackets?
Aluminum brackets stand out as the top choice for custom structural mounting solutions, balancing performance, processability, and cost efficiency for industrial applications.
Core Material Benefits
- High strength-to-weight ratio: Delivers robust structural support while minimizing product weight, ideal for weight-sensitive assemblies.
- Excellent machinability: Easily processed into complex geometries, tight slots, threaded holes, and precision mounting features via CNC machining.
- Natural corrosion resistance: Enhanced by surface treatments for long-term use in indoor/outdoor and harsh environments.
- Design flexibility: Supports custom shapes, sizes, mounting configurations, and complex structural designs.
- Sustainability: Aluminum is 100% recyclable, and precision CNC cutting reduces material waste for eco-friendly manufacturing.
- Cost-effectiveness: Abundant raw material and efficient machining lower production costs for prototypes to mass production.
Key Limitations (Design Reference)
- 6061 aluminum has lower tensile strength than specialized high-strength alloys, unsuitable for ultra-demanding structural load scenarios.
- Anodized coatings add minor thickness, requiring slight adjustment of assembly tolerances.
- Operating temperature capped at 150°C (300°F), limiting use in extreme high-temperature environments.
Premium Aluminum Alloys for Custom CNC Brackets
HLW offers three industry-leading aluminum grades to match your application’s strength, corrosion resistance, and environmental needs:

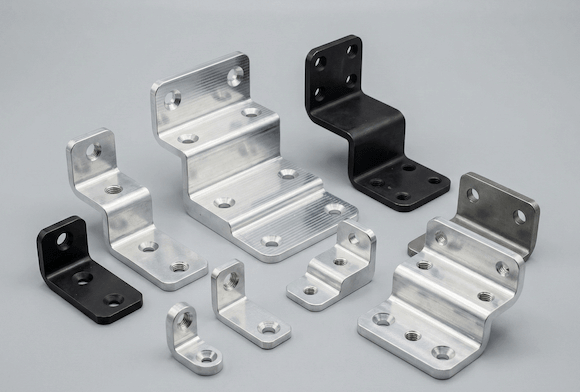

1. 6061 Aluminum Alloy (Industry Standard)
The most versatile choice for custom CNC aluminum brackets, with:
- Material composition: 97.9% Al, 0.6% Si, 1% Mg, 0.28% Cr, trace Cu/Fe/Mn/Zn
- Mechanical properties: Tensile strength 310MPa, yield strength 276MPa, elongation 12%, Brinell hardness 95
- Density: 2.7g/cm³ (0.0975lb/in³)
- Core strengths: Great machinability, weldability, corrosion resistance, and cost efficiency
- Best for: General industrial, electronics, medical, and robotics brackets

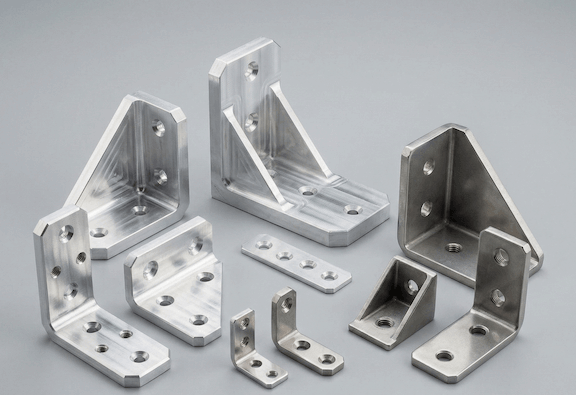

2. 7075 Aluminum Alloy (High-Strength Grade)
Superior tensile strength for high-stress applications, ideal for heavy-load automotive, fitness equipment, and aerospace brackets.
3. 5052 Aluminum Alloy (Superior Corrosion Resistance)
Exceptional anti-corrosion performance, perfect for outdoor, marine, and harsh-environment telecommunication brackets.
HLW’s CNC Machining Capabilities for Aluminum Brackets
We deliver precision machining with advanced equipment and strict process control to meet global industrial standards.
Multi-Axis Machining Expertise
- 3/4/5-axis CNC milling and turn-mill composite machining
- Supports simple to ultra-complex bracket geometries (slotted holes, threaded inserts, countersinks, multi-hole patterns)
Tight Tolerance Control
- Standard tolerance: ±0.05mm
- Critical feature precision: Down to ±0.01mm
- Ultra-high precision: ±0.005mm for mission-critical components
Size & Weight Specifications
- Minimum part size: 5×5mm
- Maximum part size: 1000×600×400mm (custom larger sizes available)
- Maximum single part weight: 50kg
Professional Surface Finishes for Aluminum Brackets
HLW provides full-spectrum surface treatments to enhance durability, corrosion resistance, and aesthetics:
- Anodizing (Type II & Type III Hardcoat): Clear/color options, improved wear resistance and surface protection
- Bead Blasting: Uniform matte texture
- Powder Coating & Painting: Heavy-duty environmental protection
- Polishing, Brushing, Electroplating: Decorative and anti-corrosion finishes
Production Details: MOQ, Lead Time & File Support
Order Quantity
- MOQ: 20 pieces
- Support: 1-piece prototyping to 500+ mass production
Lead Time
- Prototypes: 5–7 working days
- Mass production: 10–15 working days
- Standard global delivery: 2–3 weeks (expedited service for urgent orders)
Supported File Formats
DWG, PDF, STEP, IGES, STP, SLDPRT, DXF, images, and text files
Quotation & Sampling
- Standard parts: Quote within 12 hours
- Complex parts: Quote within 24 hours (3D files required)
- Custom samples available (sample cost applies)
Wide-Ranging Industry Applications
Custom CNC machined aluminum brackets from HLW serve critical roles across global industries:
- Medical Equipment: Diagnostic imaging, patient monitoring, surgical devices (biocompatible, precision-grade)
- High-Performance Automotive: Racing vehicles, sports car components (lightweight, high-precision)
- Precision Instrumentation: Optical components, lab equipment, testing apparatus (dimensional stability)
- Robotics & Automation: Robotic arms, industrial manipulators (structural integrity, smooth operation)
- Telecommunications: Antenna/satellite dish mounting (outdoor corrosion resistance)
- Semiconductor Manufacturing: Cleanroom wafer handling, equipment mounting (non-contaminating)
- Energy Storage Systems: Battery pack/power converter supports (indoor/outdoor adaptability)
- Electronics Assembly: PCB mounting, sensor housings, display supports, device enclosures
- Industrial Equipment: Machinery frames, control panels, heavy-duty mounts
- Aerospace, HVAC, Construction & Outdoor Fencing
Strict Quality Assurance & Compliance
HLW holds ISO 9001 certification (ISO 9001:2015), with additional compliance for medical, automotive, and aerospace industries (ISO 13485, IATF 16949, AS9100D, ITAR registered).
- Full-process quality inspection for every bracket
- Precision testing: CMM, calipers, micrometers, height gauges, thread gauges
- First Article Inspection (FAI) for production consistency
- Material Test Reports (MTRs) and RoHS compliance available
- Calibrated tools and stable production setups ensure repeatable quality
HLW’s Custom Aluminum Bracket Manufacturing Process
- File Submission & Review: Client provides 2D/3D files; HLW engineers review manufacturability (NDA signed for IP protection)
- DFM Optimization: Free design-for-manufacturing suggestions to reduce cost and lead time
- CNC Machining & Finishing: Select multi-axis equipment and apply specified surface treatments
- Inspection & Packaging: Full dimensional inspection, secure packaging to avoid transit damage
- Global Delivery: Partner with DHL/FedEx/UPS; support EXW/FOB and customs clearance
Frequently Asked Questions (FAQ)
- What file formats do you accept?DWG, PDF, STEP, IGES, STP, SLDPRT, DXF, images, and text files.
- Are you a manufacturer or trading company?We are a direct CNC machining manufacturer founded in 2005.
- Can you provide secondary operations?Yes, including tapping, threaded inserts, spot welding, and small sub-assembly.
- Do you protect intellectual property?We sign NDAs and restrict file access to essential production staff only.
- Can you handle global shipping?Yes, we provide international logistics and customs clearance support.
Call to Action
HLW is your trusted global partner for custom CNC machining of aluminum brackets, delivering precision, durability, and cost-effective solutions from prototyping to mass production. Whether you need anodized 6061 aluminum brackets for electronics or high-strength 7075 brackets for automotive applications, we tailor every part to your exact specifications.
Contact us today to get your fast quote:
Call: +86 18664342076
Email: info@helanwangsf.com
Upload your CAD files for a 12–24 hour customized quotation!
